ABS-G3

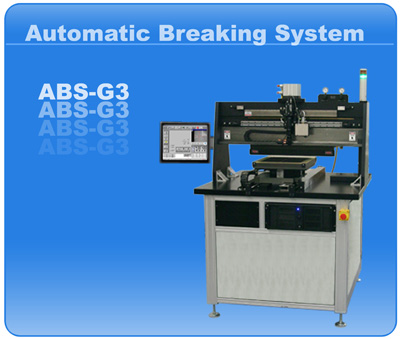

The ABS-G3 is a new generation of industrial Automatic Breaking Systems specifically designed for the Flat Panel Display Industry, is matched to Fonon Technology precision Laser Glass Scriber Fantom™ G3.

This system will process up to Generation 3 fully scribed glass panels. It is designed to transport, precision align, and separate the glass panels along the scribe lines, propagating the ZWLCT™ (Zero Width Laser Cutting Technology™) laser scribe all the way through the glass.

This breaking system complements the Fantom™ G3 Laser Scribing System with compatible software control language, files, and operational formats.

ABS-G3 Automatic Breaking System Features

Breaking Capabilities

  • Direct Drive glass moving system
  • Automatic vision/image recognition system with dual CCD video cameras
  • Advanced mathematics alignment algorithm for maximum alignment accuracy to fiduciary (recognition marks)
  • Touch screen interface
  • Built in product parts library, breaking topology, breaking parameters
  • Topology files – unlimited storage with 2 topology files loaded at the same time for TFT and CF sides

Vision System

  • Direct Drive Vision System axis
  • Type: Pattern Recognition with automatic alignment
  • Two-level Magnification (high/low magnification)
  • Optical zoom 0.5 to 2.0
  • Illumination: Coaxial fiber-coupled light source
  • Advanced mathematics alignment algorithm for maximum alignment accuracy to fiduciary (recognition marks)

Motion System

  • Type X/Y/F-direct drive servo platform
  • Working area 800 x 800 mm
  • Maximum stroke (X x Y) 500 x 500 mm
  • Z axis – precision linear bearing with micro stepping ball screw drive
  • Accuracy +- 10µm
  • Repeatability +- 1 µm
