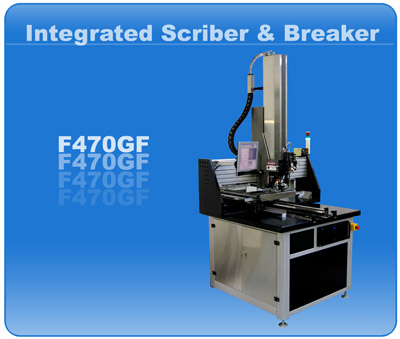

F470GF: Integrated Scriber & Breaker

laser glass scribing system fpd

The F470GF is the first in the world laser scribing system with simultaneous scribe and break capabilities.

A state of the art new generation of glass scribing systems, it can operate as a standalone or a component for an inline system.

The system is based on Fantom™ technology and built from modern components allowing modular replacement and enhanced reliability.

The system does not have any external laser optics and does not require any field alignment.

Direct drive 4 axis motion system and vision image recognition insures smooth integration into any manufacturing line.

Capabilities

  • Applications include but not limited to singulation of Flat Panel Displays, new generation of miniature TFT LCD, OLED from single sided and double layer panels.
  • Maximum substrate size is 500 x 500 mm.

System has:

  • Remote monitoring
  • Clean room level 10.000 and 1.000
  • Advanced vacuum holding table
  • Pre-wired for inline integration
